Type 62
Standard Railing Flange

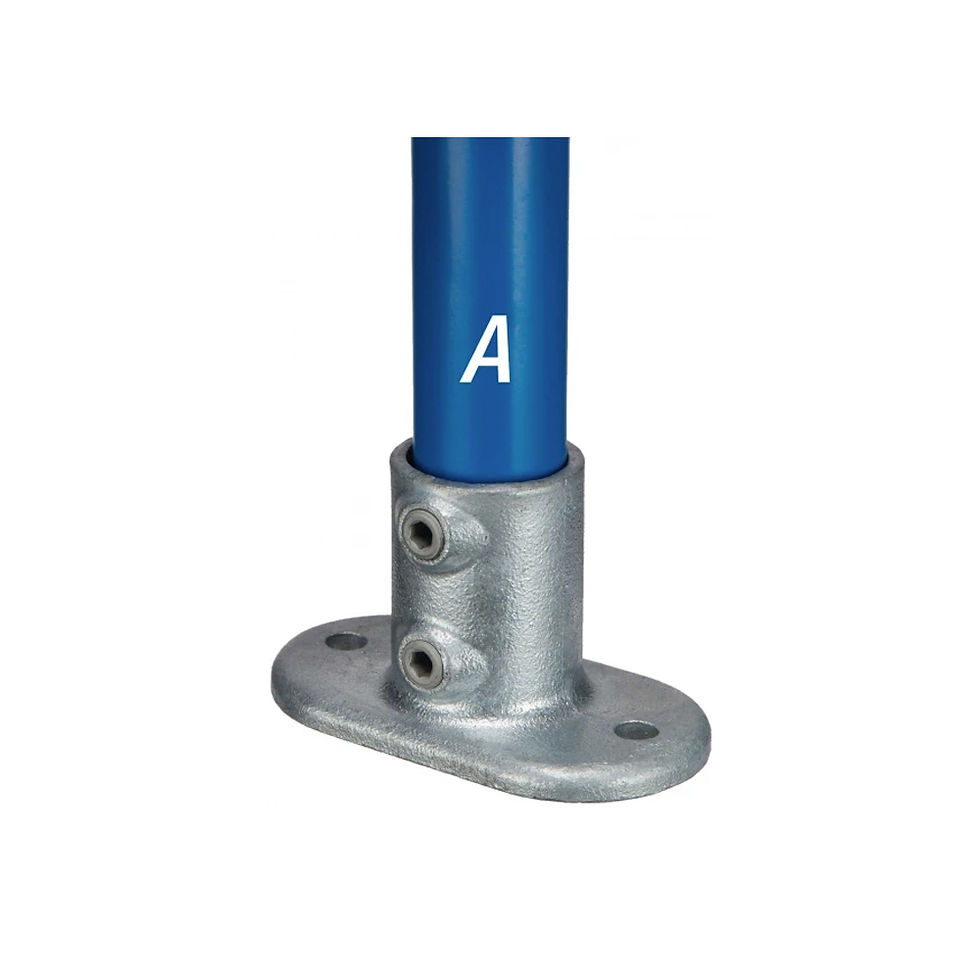

The Type L62 flange should always be used to fix down guardrailing and balustrades. Holes are of sufficient diameter to give a good fixing with either a mechanical or chemical anchor. Two set screws in the vertical socket give greater stability to the upright. It is recommended that the fixing holes in the flange be in-line with the applied load. The tube is able to pass through the base of the fitting.
Part | Part Name | Weight | Pole A | D | E | F | G | H | Ø |
|---|---|---|---|---|---|---|---|---|---|
62-5 | Standard Railing Flange, 26.9mm O/D | 0.59 kg | 5 | 64 mm | 116 mm | 76 mm | 76 mm | 8 mm | 11 mm |
62-6 | Standard Railing Flange, 33.7mm O/D | 0.73 kg | 6 | 76 mm | 128 mm | 89 mm | 89 mm | 8 mm | 14 mm |
62-7 | Standard Railing Flange, 42.4mm O/D | 0.92 kg | 7 | 75 mm | 140 mm | 89 mm | 102 mm | 10 mm | 14 mm |
62-8 | Standard Railing Flange, 48.3mm O/D | 1.12 kg | 8 | 85 mm | 155 mm | 89 mm | 115 mm | 10 mm | 14 mm |
62-9 | Standard Railing Flange, 60.3mm O/D | 1.76 kg | 9 | 102 mm | 165 mm | 127 mm | 127 mm | 10 mm | 18 mm |
